Power Line EMI Adapter MSN15

EMI Adapter for power lines and PLC MSN15
OnFILTER' Power Line EMI Adapter MSN01 User's Guide

MSN15 includes these accessories

Accessories for OnFILTER' Power Line EMI Adapter MSN15

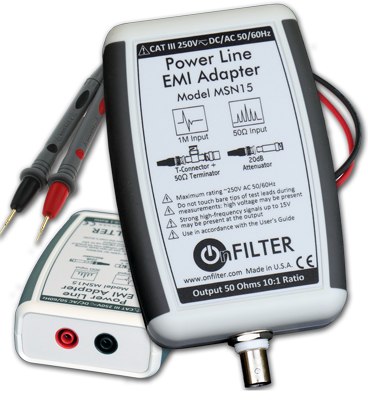

MSN15 hand-held power line EMI adapters provide galvanic separation from high mains' voltages but a straight path for high-frequency signals so that you can connect your sensitive instrument to live power lines for analysis and quantification. MSN15 can measure EMI between any connections in a power outlet.  It also allows measurements of EMI between different grounded parts without creating ground loops using any oscilloscope or a spectrum analyzer, grounded via power outlet or not.

Among applications for MSN15 EMI Adapters are:

  • Conducted emission measurements

  • Compliance with SEMI E176 Standard and IPC-A-610 EOS section

  • EMI audits, diagnostics and troubleshooting

  • Power Line Communication (PLC) Standards:
    Homeplug AV and AV2 -- CENELEC EN50065 (all bands) -- IEEE 1902.2 -- ARIB (Japan) -- FCC

Specification

Request a Quote

All specifications are subject to change without notice
Typical Applications of MSN15
OnFILTER' Power Line EMI Adapter MSN15 Frequency Response
MSN15 Frequency Response
AC Power Transient Measured with OnFILTER' EMI Adapters
EMI on AC Power Measured with OnFILTER' EMI Adapters
HomePlug AV2 PLC Signal on AC Power Measured with OnFILTER' EMI Adapters
Transient on AC Mains
EMI from Switching Power Supply
PLC HomePlug AV2 Spectrum
